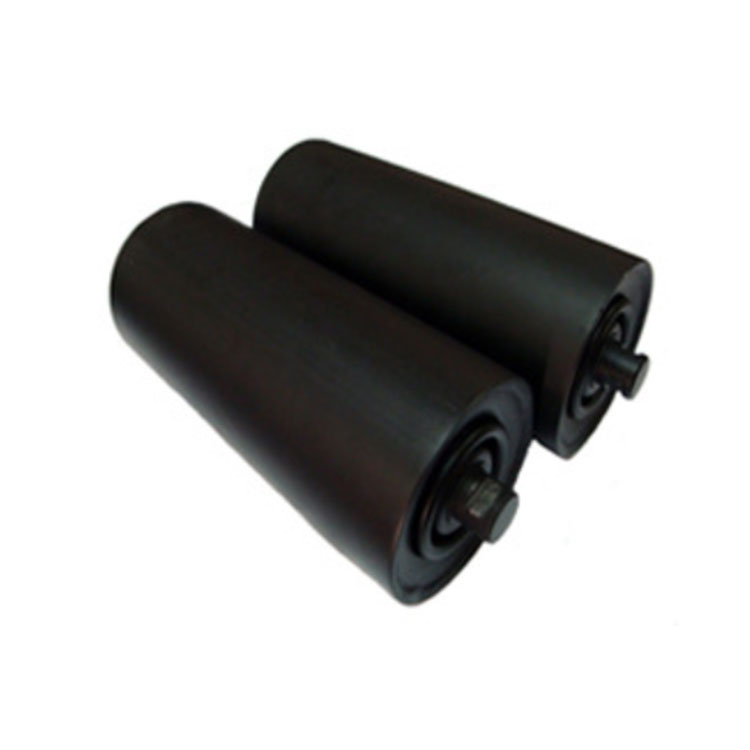

Conveyor Idler Bearings

During the use of Conveyor Idler Bearings, if pay attention to the following points, it will be very helpful to improve the service life and operating efficiency:A. Ensure the good working effect of the return cleaner. Once the stain on the return belt sticky to the Conveyor Idler Bearings, the outer circle of the roller will no longer be uniform, causing the belt to jump, thereby damaging the idler bearing.

Send Inquiry

Product Description

During the use of Conveyor Idler Bearings, if pay attention to the following points, it will be very helpful to improve the service life and operating efficiency:

A. Ensure the good working effect of the return cleaner. Once the stain on the return belt sticky to the Conveyor Idler Bearings, the outer circle of the roller will no longer be uniform, causing the belt to jump, thereby damaging the idler bearing.

B. Please use special buffer rollers or buffer beds in areas that receive direct impact from materials to slow down the impact force.

C. The material on the belt should not exceed the design load to avoid material overflowing the belt and damaging the rollers.

D. When the idler makes abnormal noise or metal friction sound, the idler should be inspected and maintained, and replaced the damaged bearings or seals.

Name	Specification	D	d	L	b	h	f
Conveyor Idler Bearings	89*250	89	20	250	14	6	14
Conveyor Idler Bearings	89*315	89	20	315	14	6	14
Conveyor Idler Bearings	89*600	89	20	600	14	6	14
Conveyor Idler Bearings	89*750	89	20	750	14	6	14
Conveyor Idler Bearings	89*950	89	20	950	14	6	14
Conveyor Idler Bearings	108*380	108	25	380	18	8	17
Conveyor Idler Bearings	108*465	108	25	465	18	8	17
Conveyor Idler Bearings	108*1150	108	25	1150	18	8	17
Conveyor Idler Bearings	108*1400	108	25	1400	18	8	17

Company Profiles:

Jiangsu Wuyun Transmission Machinery Co., LTD is a professional Chinese conveyor manufacturer specializing in belt conveyor, conveyor pulley, drum pulley, conveyor idler, conveyor belt cleaner and other conveyor parts.
