Why Is the Spiral Idler the Ideal Choice for Self-Cleaning and Wear-Resistant Conveyor Belt Support?

In bulk material handling, conveyor systems are subject to harsh conditions that can lead to belt damage, material buildup, and premature component wear. The Spiral Idler from Wuyun is designed to address these challenges with a steel spiral structure that offers self-cleaning properties and high wear resistance. Used primarily on the return belt of belt conveyors, this idler effectively removes sticky material buildup while providing stable support. Available in various specifications, including 89mm and 108mm diameters, it is suitable for applications in oil and gas, mining, steel metallurgy, ports, and hydropower. This article examines the product's features, specifications, and the manufacturing quality that makes it a practical choice for demanding industrial environments.

The Problem with Standard Return Idlers in Bulk Material Handling

Return idlers on belt conveyors face a persistent challenge: material carryback. When conveyed materials—such as wet ore, sticky clay, or fine aggregates—adhere to the belt surface, they accumulate on the return idlers as the belt passes over them. This buildup can lead to several problems: increased belt wear from abrasive material trapped between the belt and the idler, belt misalignment due to uneven roller buildup, and premature failure of idler bearings and seals. The Spiral Idler from Wuyun is engineered to mitigate these issues through its unique design.

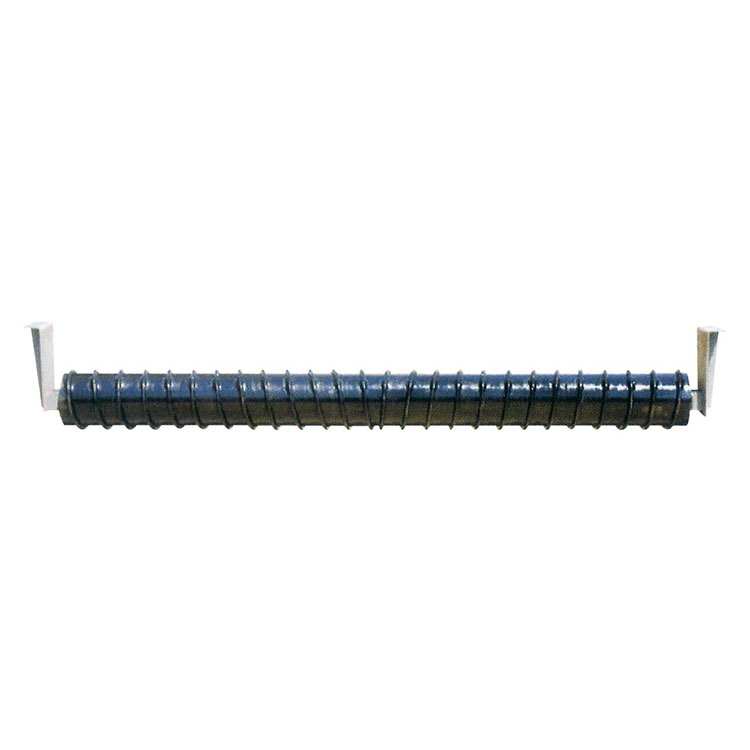

The spiral idler features a steel spiral structure that not only supports the belt but also actively scrapes away material buildup as the idler rotates. This self-cleaning action reduces the need for manual cleaning, minimizes belt damage, and extends the service life of both the belt and the idler itself. The high-frequency welded pipe construction, combined with high-density nylon seals and bearings, ensures durability even in abrasive and wet conditions. For operators in mining, aggregate processing, and other heavy industries, this idler offers a practical way to improve conveyor reliability and reduce maintenance costs.

Product Specifications

The following table summarizes the key specifications for the Spiral Idler from Wuyun.

These specifications cover a range of common conveyor widths and load requirements, allowing for selection based on the specific application. The idler is constructed from high-frequency welded pipes with high-density nylon seals, spiral springs, bearings, and round steel components, ensuring structural integrity and long service life.

Key Features and Performance Advantages

The idler offers several performance advantages that make it a practical choice for demanding conveyor applications.

Self-Cleaning Spiral Design

The steel spiral structure is the defining feature of this idler. As the idler rotates, the spiral acts as a continuous scraper, dislodging material that has adhered to the belt surface. This self-cleaning action prevents material buildup on the idler, maintaining consistent belt tracking and reducing the risk of belt damage. The design is particularly effective for materials that tend to stick, such as wet clay, fine aggregates, and ore with high moisture content.

High Wear Resistance

The idler is built to withstand abrasive conditions. The high-frequency welded pipe construction provides a durable outer surface, while the steel spiral is engineered for resistance to wear. This durability reduces the frequency of idler replacement, lowering long-term maintenance costs for conveyor operators.

Reliable Sealing and Bearing Protection

The high-density nylon seals protect bearings from ingress of dust, water, and abrasive materials. This sealing is essential for maintaining bearing performance in harsh environments, where contamination is a primary cause of premature bearing failure. The bearing arrangement ensures smooth rotation and consistent operation, even under heavy loads.

Versatile Application Range

The idler is suitable for a variety of industries, including mining, aggregate processing, steel metallurgy, ports, and hydropower. Its design accommodates different belt widths and load conditions, making it a versatile component for conveyor systems across these sectors.

Applications Across Industries

The Spiral Idler from Wuyun is used in a variety of industries and applications:

• Mining and mineral processing – Handles abrasive ores and materials with high moisture content, where material carryback is a persistent issue.

• Aggregate and sand & gravel – Provides reliable support for conveyors handling wet or sticky materials, reducing belt and idler wear.

• Steel metallurgy – Suitable for handling raw materials and finished products in steel mills, where durability and resistance to wear are critical.

• Port and terminal operations – Used in bulk material handling at ports, where conveyors operate in challenging coastal environments.

• Hydropower and energy – Applied in material handling systems for hydroelectric projects and power generation facilities.

• Oil and gas – Used in handling systems for drilling materials and aggregates in oil and gas operations.

The idler's design and construction make it adaptable to these diverse operating conditions, providing reliable performance across different material types and conveyor configurations.

Quality Assurance and Manufacturing Capabilities

Jiangsu Wuyun Transmission Machinery Co., Ltd. has been manufacturing transmission and conveying equipment for more than 20 years. The company operates a 15,000-square-meter facility with over 200 sets of metal cutting, welding, and inspection equipment. The company holds ISO 9001 quality management, ISO 14001 environmental, and ISO 45001 occupational health and safety certifications, as well as a general belt conveyor production license.

The company has been recognized as a high-tech enterprise in Jiangsu Province and holds 23 national patents. It collaborates with undergraduate universities for industry-university-research partnerships, focusing on new energy-saving and efficiency-enhancing products. The company's quality control system ensures that each idler meets the required specifications for dimensions, material properties, and performance.

Frequently Asked Questions

Q: What is the primary advantage of a spiral idler over a standard return idler?

A: The spiral idler's steel spiral design provides a self-cleaning function that removes material buildup from the belt surface, reducing wear on both the belt and the idler. Standard return idlers lack this self-cleaning feature and are more prone to material accumulation and belt damage.

Q: What materials are used in the construction of the spiral idler?

A: The idler is constructed from high-frequency welded pipes, high-density nylon seals, spiral springs, bearings, and round steel components. This combination provides durability, sealing, and structural integrity.

Q: What are the standard sizes available for the spiral idler?

A: Standard sizes include 89mm diameter with lengths of 600mm, 750mm, and 950mm, and 108mm diameter with lengths of 1150mm and 1400mm. Custom sizes may be available upon request.

Q: Is the spiral idler suitable for use with sticky materials?

A: Yes, the self-cleaning spiral design is particularly effective for sticky materials such as wet clay, fine aggregates, and ore with high moisture content.

Q: What industries commonly use the spiral idler?

A: The idler is used in mining, aggregate processing, steel metallurgy, ports, hydropower, and oil and gas industries.

Q: What quality certifications does Wuyun hold?

A: Wuyun holds ISO 9001, ISO 14001, and ISO 45001 certifications, as well as a general belt conveyor production license and SGS supplier certification.

Conclusion

The Spiral Idler from Wuyun offers a practical solution for conveyor systems facing challenges from material carryback, abrasive conditions, and frequent maintenance. Its self-cleaning spiral design, durable construction, and range of available sizes make it a suitable choice for mining, aggregate processing, and heavy industrial applications. Backed by ISO certifications, over 20 years of manufacturing experience, and a commitment to quality, Wuyun provides products that operators can rely on for consistent performance. For inquiries, technical specifications, or to discuss your conveyor component requirements, feel free to contact us!
