What Makes Spiral Idler Essential for Conveyor Systems?

In modern bulk material handling, reliability, efficiency, and longevity of equipment components determine overall performance. Among these components, the Spiral Idler plays a vital role in ensuring smooth conveyor operation. Its design helps reduce material buildup, extend belt life, and enhance system stability. Whether in mining, power plants, cement production, or ports, choosing the right spiral idler can directly impact cost savings and operational safety.

This article introduces the technical parameters, benefits, and applications of spiral idlers, along with a FAQ section designed to answer the most common industry questions.

Why Spiral Idler Is Important

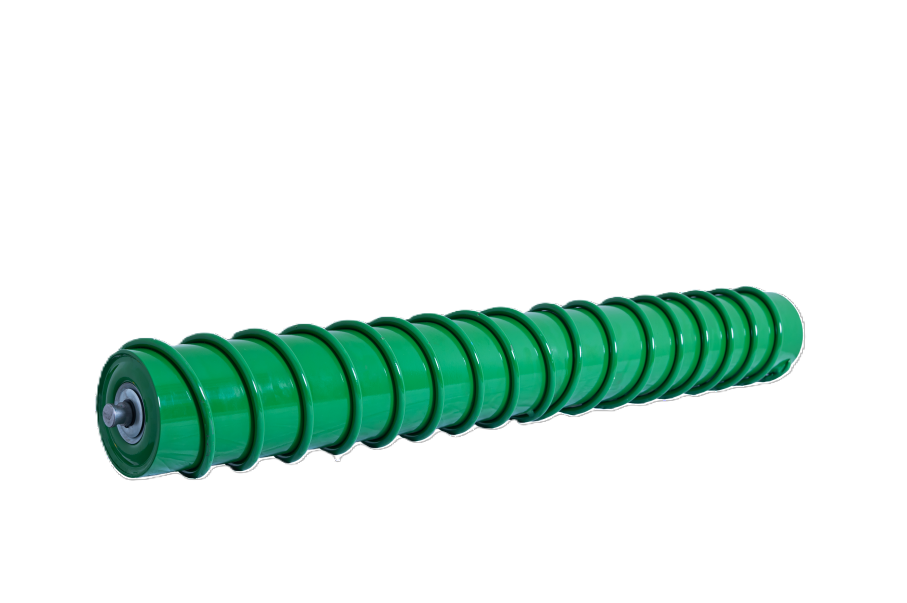

A spiral idler differs from a standard flat or trough idler due to its helical design. This structure enables it to shed sticky material, minimize material carryback, and clean the conveyor belt surface during operation. As a result, downtime for cleaning is reduced, and overall conveyor efficiency improves.

Key functions include:

• Belt cleaning effect: Helps prevent material carryback that could damage the belt.

• Noise reduction: The spiral shape ensures smoother contact with the conveyor belt.

• Improved belt tracking: Reduces belt misalignment by evenly distributing load.

• Extended service life: Minimizes wear and tear on the belt and idler.

Technical Parameters of Spiral Idler

To choose the right spiral idler, understanding technical specifications is critical. Spiral idlers produced by Jiangsu Wuyun Transmission Machinery Co., Ltd. are designed to meet international standards and strict quality requirements.

General Product Parameters

• Pipe diameter: 63mm – 219mm

• Shaft diameter: 17mm – 40mm

• Length: 150mm – 3500mm

• Bearing: 6204 – 6310 series, high-quality deep groove ball bearings

• Surface treatment: Powder coating, rubber lagging, or galvanized finish

• Material: High-strength steel pipe, precision machined for balance

• Load capacity: Designed for heavy-duty applications in mining, cement, ports, and power plants

• Sealing system: Labyrinth or multi-stage seal for dust and water resistance

Sample Specification Table

Applications of Spiral Idler

Spiral idlers are widely used in industries where sticky or fine materials often cause buildup problems.

• Mining industry: Prevents ore and coal carryback that may shorten belt life.

• Cement plants: Handles fine powders with reduced material buildup.

• Ports and terminals: Ensures smooth transportation of bulk materials like grain or fertilizers.

• Power stations: Efficient in conveying coal and ash.

Advantages of Using Spiral Idler

1. Reduced cleaning downtime – eliminates the need for manual belt cleaning.

2. Lower maintenance cost – minimized carryback reduces component wear.

3. Improved efficiency – consistent belt movement ensures uninterrupted production.

4. Longer belt lifespan – reduced friction protects belt surfaces.

5. Better safety – less spillage and material buildup around conveyors.

FAQ About Spiral Idler

Q1: What is a Spiral Idler and how does it work?
A Spiral Idler is a type of conveyor idler with a helical surface design. Its spiral grooves rotate along the conveyor belt, removing sticky or fine material and preventing carryback. This self-cleaning action keeps the belt surface clear, improving efficiency and reducing maintenance downtime.

Q2: What industries benefit most from Spiral Idlers?
Industries such as mining, cement, ports, and power plants benefit most. In these environments, sticky, abrasive, or fine materials tend to accumulate on belts, and Spiral Idlers help solve this problem effectively.

Q3: How long does a Spiral Idler typically last?
The lifespan depends on usage, load, and working environment. Generally, with proper installation and regular maintenance, a spiral idler can last several years. High-quality models from Jiangsu Wuyun Transmission Machinery Co., Ltd. are designed for extended service life even under harsh conditions.

Q4: What factors should I consider when choosing a Spiral Idler?
Key factors include pipe diameter, shaft size, bearing quality, sealing system, and application environment. It's also important to consider surface treatment, as galvanized or rubber-lagged options can extend durability in corrosive or abrasive conditions.

Conclusion

A Spiral Idler is not just an accessory in conveyor systems but a key component that directly affects operational efficiency and cost savings. By preventing carryback, extending belt life, and reducing maintenance, it provides unmatched advantages for bulk handling industries.

If you are looking for reliable and high-performance spiral idlers, Jiangsu Wuyun Transmission Machinery Co., Ltd. offers customized solutions with advanced manufacturing standards. For inquiries, technical consultation, or product details, please feel free to contact our professional team.
